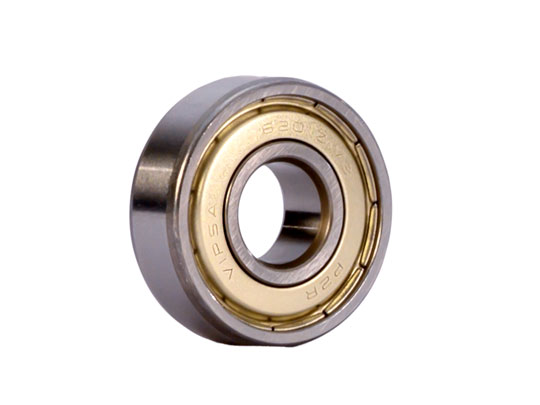

Vipsa P2R Miniature Bearings

Vipsa P2R Miniature Bearings

The following series are available in Sealed / Sheild Types, Rivetd Steel and Nylon Cage and C2, CN, C3, C4 and C5 radial Clearance.

Variants: Sealed / Sheild Types, Rivetd Steel and Nylon Cage

Radial Clearance: C2, CN, C3, C4 and C5

Options
Z One Side Metal Shield
ZZ Both Side Metal Shield
RS One Side Rubber Shield
2RS Both Side Rubber Shield
C0 - C5 Clearance Levels
Series Nominal Bearing Dimensions Preferred Shoulder Diameters
d D B,C r (min) da (min) da (max) Da (max)
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
607 7 0.2756 19 0.748 6 0.2756 0.3 0.012 9.0 0.3543 10.4 0.4094 17.0 0.6693
608 8 0.3149 22 0.8661 7 0.2756 0.3 0.012 10.0 0.3937 12.2 0.4803 10.0 0.7874
609 9 0.3543 24 0.9449 7 0.2756 0.3 0.012 11.0 0.4331 13.1 0.5157 12.0 0.8661
Series Nominal Bearing Dimensions Preferred Shoulder Diameters
d D B,C r (min) da (min) da (max) Da (max)
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
624 4 0.1575 13 0.5118 5 0.1968 0.2 0.007 5.6 0.220 6.2 0.244 11.4 0.449
625 5 0.1969 13 0.6299 5 0.1968 0.3 0.012 7.0 0.276 7.6 0.299 14.0 0.551
626 6 0.2362 16 0.7480 6 0.2362 0.3 0.012 8.0 0.315 9.5 0.374 17.0 0.669
627 7 0.2756 22 0.8661 7 0.2756 0.3 0.012 9.0 0.354 12.2 0.480 20.0 0.787
628 5 0.3149 24 0.9448 8 0.3149 0.3 0.012 10.0 0.394 12.1 0.476 17.0 0.669
629 9 0.3543 26 1.0236 8 0.3149 0.3 0.012 11.5 0.453 ... ... 14.0 0.945
x
Basic
Bearing
No. 		Nominal Bearing Dimensions Preferred Shoulder Diameters
d D B r (min) da (min) da (max) Da (max)
Open Shielded sealed
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
685 5 0.1969 11 0.4331 3 0.1181 5 0.1969 0.15 0.006 6.2 0.244 6.2 0.244 9.9 0.390
686 6 0.2362 13 0.5118 3.5 0.1378 5 0.1969 0.15 0.006 7.4 0.291 7.4 0.291 11.7 0.461
687 7 0.2756 14 0.5512 3.5 0.1378 5 0.1969 0.15 0.006 8.5 0.335 8.5 0.335 12.7 0.500
688 8 0.3150 16 0.6299 4 0.1575 5 0.1969 0.20 0.008 ... ... ... ... ... ...
689 9 0.3543 17 0.6693 4 0.1575 5 0.1969 0.20 0.008 10.7 0.421 10.7 0.421 15.2 0.598
Series Nominal Bearing Dimensions Preferred Shoulder Diameters
d D B,C r (min) da (min) da (max) Da (max)
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
693 3 0.1181 8 0.3150 3 0.1181 0.15 0.006 4.3 0.169 4.3 0.169 7.3 0.287
694 4 0.1575 11 0.4331 4 0.1575 0.20 0.008 5.2 0.205 5.2 0.205 9.8 0.386
695 5 0.1969 13 0.5118 4 0.1575 0.20 0.008 6.6 0.260 6.6 0.260 11.4 0.449
696 6 0.2362 15 0.5906 5 0.1969 0.30 0.012 7.6 0.299 7.6 0.299 13.4 0.528
697 7 0.2756 17 0.6693 5 0.1969 0.30 0.012 9.0 0.354 9.0 0.354 15.0 0.591
698 8 0.3150 19 0.7480 6 0.2362 0.30 0.012 10.0 0.394 10.0 0.394 16.5 0.650
